Lessons from Building NUSMods 2.0

Created by Beng / @ahbengish

Hi, I'm Beng

I built NUSMods

(And some other things...)

What is NUSMods?

You only see the final product

Now let's take a look behind the scenes

Outline

NUSMods: The Dirty History
Design for Hackers
Interesting Techniques
Future Work

Scratch your own itch

Solve your own problems
Caring deeply gets others to care
Better yet, scratch shared itches

Build something, anything

Building stuff is the best way to learn
Practice your craft
NUSMods was originally built to learn JavaScript properly

Codename: CORSet

Don't be afraid to show your work

Connect with your community (NUS Hackers)
Friday Hacks is a great place to start
Everyone was a noob once

You'll never feel ready enough

(For your MVP)

July 6, 2012: nusmods.com registered

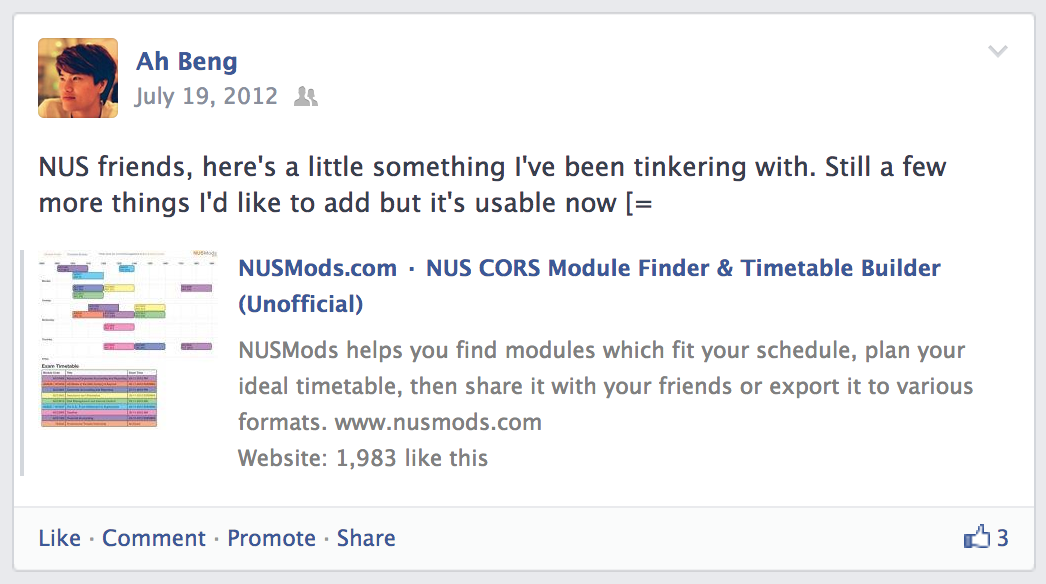

July 19, 2012: "Public" launch

MVPs are for testing assumptions

My assumption: NUSMod's Unique Selling Proposition was the Module Finder

Initial flow

Your users will surprise you

(i.e. I was dead wrong)

Listen to signs you need to pivot

Data doesn't lie
80% of users use 20% of features
You need metrics

How do you know what events to capture upfront?

You don't. Try Heap Analytics

Fake it 'til you make it

Do things manually
Until you can't
You probably don't need a neural network

No one cared

Don't be afraid to promote yourself

Using "we" instead of "I":

Only added credits a few weeks later:

Technology stack

Initial frontend: Coffeescript, LESS, Jade
Current frontend: Backbone.Marionette, JavaScript, RequireJS, SASS
Build process: CodeKit, now Grunt
Crawling and processing module data: Node.js
Minor backend bits: PHP

Overarching principles

Static site (Fast, optimized for CDN, far-future expires headers, cache busting)
Touch-friendly
Most features usable offline

Design for Hackers

Form follows function

Butt-ugly craigslist

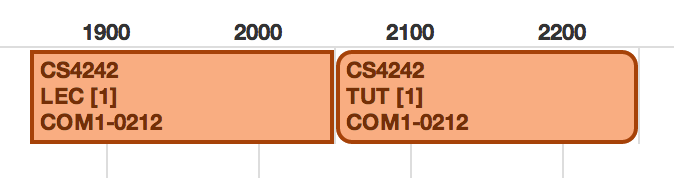

Choice vs. no choice

Which would you pick up?

Contour Bias

“A tendency to favor objects with contours over objects with sharp angles or points.”

Amygdala: fear subprocessor

Sharp Corners = Touch-Me-Not
Round Corners = Touch Me

Universal Principles of Design

Most well-loved feature?

The colors

NUSMods from an alternate universe

Codename: CORSair

Color Psychology

Pastels = calming, soothing

Soothing timetable

Design is a set of decisions about a product

(As defined at Quora)

Interesting techniques

(I hope!)

Client-side export

Excel, HTML and iCalendar files generated directly in-browser
Eliminates server round trip and can be downloaded even while offline
For JPG / PDF, exported HTML is rendered by server in a headless WebKit instance

Data URIs


<a href="data:application/vnd.ms-excel,%3C%3Fxml%20version%3D%221.0%22%3F
%3E%3CWorkbook%20xmlns%3D%22urn%3Aschemas-microsoft-com%3Aoffice%3A
spreadsheet%22%20xmlns%3Ass%3D%22urn%3Aschemas-microsoft-com%3Aoffice%3A
spreadsheet%22%3E…”>Excel File</a>

HTML5 Download Attribute


<a download="My NUSMods.com Timetable.xls" href="#">Excel File</a>

Only supported by Chrome in past 2 years, Firefox in past year
Downloadify library instead for other browsers (requires Flash)

SpreadsheetML

Supported since Office 2003


<?xml version="1.0"?>
<Workbook xmlns="urn:schemas-microsoft-com:office:spreadsheet"
          xmlns:ss="urn:schemas-microsoft-com:office:spreadsheet">
  <Styles>
    <Style ss:ID="Default">
      <Alignment ss:Horizontal="Center" ss:Vertical="Center" ss:WrapText="1"/>
    </Style>
    <Style ss:ID="b">
      <Font ss:FontName="Calibri" ss:Size="12" ss:Bold="1"/>
      <NumberFormat ss:Format="0000”/>
    </Style>
  </Styles>
  <Worksheet ss:Name="My NUSMods.com Timetable">
    <Table ss:DefaultColumnWidth="35">
      <Column ss:Width="65"/>
      <Row>
        <Cell ss:Index="2" ss:MergeAcross="1" ss:StyleID="b">
          <Data ss:Type="Number">800</Data>
        </Cell>

Never rewrite your software

1st rewrite commit ~1 year and 170 commits ago
Have to deliver all old features before shiny new features
It always takes longer than you think
Things keep changing
Do iterative refactoring instead

NUSMods API

Consolidates and normalizes NUS module information from:

CORS historical bidding statistics
CORS module information listings
IVLE API
NUS Bulletin
NUS Examination Time-Table

One step further: NUSMods.js Library

Delta updates

Module data is updated at most a few times daily
Solution: statically generated JSON
Since-[last-updated-timestamp].json
Maybe with weekly / monthly rollups
Taking static philosophy too far?
